Attic Ductwork
This is the page body. You can describe the gallery here. For example, introduce a particular project or product before presenting the specifics through images and captions.

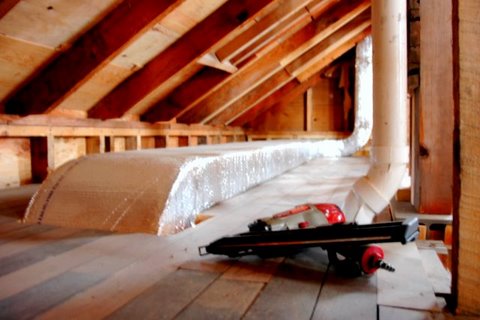

Duct following roof line to attic.
This duct originated in the basement, passed thru a wall made thicker to accommodate it, then ran horizontally in a kneewall. We found the roof anglethen made a 32 degree elbow to follow the roof and then a 58 degree elbow to straighten it out to lay on the coller ties.
This is the horizontal duct
This is duct rising from 1st floor, running thru knee wall to rise up to second floor attic

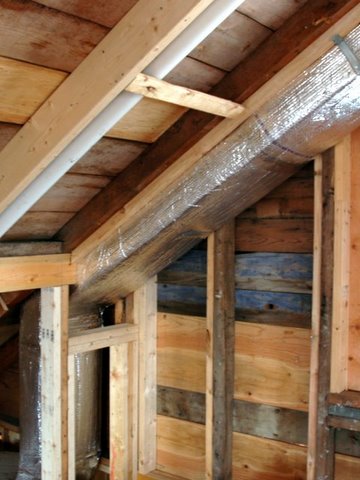

Duct following rafters.
This is the duct run up the rafter line

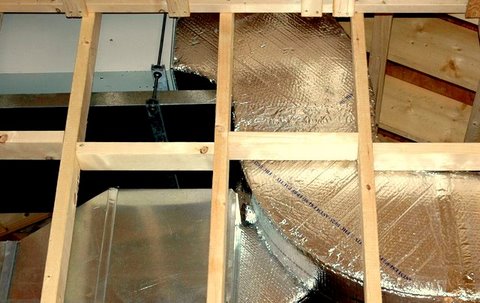

Two zone system.
While difficult to see. The insulated duct in foreground is 1 zone running to the right while the insulated supply in rear runs to the left, with the return in the middle. One airhandler serving two zones.

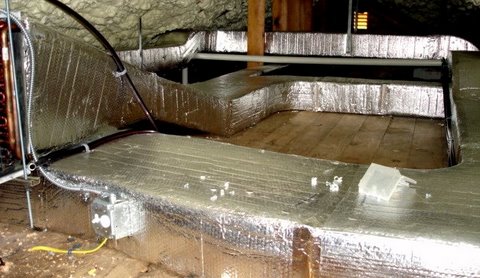

Another two zone system.
This is a great example of how we can fit using unusal offsets and custom fittings custom made for any application. If it can be done, we will do it!
